A2L Field-Installed Refrigerant Detection Sensor
Danfoss 73G2090 Dual Refrigerant Sensor
- Sensor for R454B and R32
- Wires directly to furnace/air handler low-voltage terminals, for ease of application
Sensor Kit Includes:
- 1 ea. Danfoss 73G2090 sensor
- 1 ea. 5’ connection cable
- 2 ea. 2” zip ties
- 1 ea. 2” x 4” (sticker) White refrigerant conversion label
- 1 ea. 2” x 4” (sticker) White wiring schematic label
- 2 ea. 1” x 1.5” (sticker) Red R32
- 2 ea. 1” x 1.5” (sticker) Red R454B
- 4 ea. 1” x 1.5” (sticker) Red Pipe (Refrigerant Safety Group A2L)
- 1 ea. 4” x 6” (sticker) Yellow (unit ID warning label A2L)
- 1 ea. 2” x 4” (sticker) Yellow (notice-unit must be powered)
- 1 ea. 1” x 2” (sticker) Green (RDS Status Lights)
- 2 ea. #8 x 1” self-tapping screws
- 2 ea. 5/8” grommets
A2L Field-Installation Instructions
Read all the instructions in this guideline carefully. If any of the instructions are unclear, clarify with a qualified licensed technician before proceeding.
- If not already plugged in, plug the 5’ sensor detection cable into the Refrigerant Detection Sensor (RDS).
- With the screws provided, mount the sensor directly onto the sheet metal delta plate on the front of the coil.
- The preferred position would be approximately 1” above the drain pan and below the suction line.
- If there is no room due to an installed TXV or feeder parts, find an open spot in the general area.
- The sensor can be mounted horizontally or vertically for the desired directional orientation.
- NEVER INSTALL THE SENSOR ON THE BOTTOM OF A CABINET UPSIDE DOWN!
- Now run the 5’ cable to the electric/fan low-voltage control terminals.
- It may be necessary to drill a 5/8” hole to access the low-voltage terminals.
- Use the grommets provided to protect the cable.
- Use the bar ties to secure the looped cable after the proper length is determined.
- DO NOT ZIP TIE OR MAKE A SERVICE LOOP AT THE BOTTOM NEAR THE RDS SENSOR!
- DO NOT ZIP TIE THE CABLE TO PIPES!

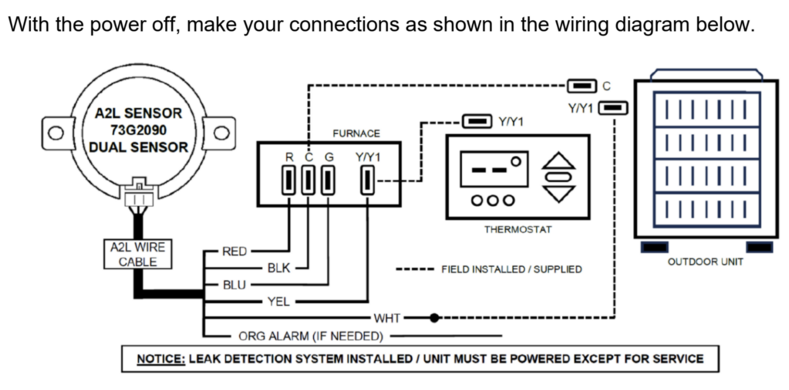

- On the furnace/air handler low-voltage terminal block:
- Connect the red wire to the “R” terminal
- Connect the black wire to the “C” or “COM” terminal
- Connect the blue wire to the “G” terminal
- Connect theyellow wire to the “Y” or “Y1” terminal
- Connect thewhite wire to the low-voltage wire coming from the “Y” or “Y1” from the terminal on the outdoor unit.
A2L Replacement Coils with R454B Pistons
Types of A2L Coils
- A2L Uncased Replacement A-Coils
- A2L Cased Replacement A-Coils
- A2L Mobile Home Replacement Coils
- A2L Cased Horizontal Slab Coils
Additional pistons attached for suggested nominal tonnages
